EcoSmart AB3 Bioethanol Burner Insert

AB3 Bioethanol Burner Insert

The AB3 Bioethanol Burner is a bioethanol burner insert, integrate into your own design.

Our EcoSmart AB3 Bioethanol Burner comes with Free Fuel, that’s 40 litres of e-NRG.

Please add the e-NRG to your basket; the discount will automatically be applied at checkout.

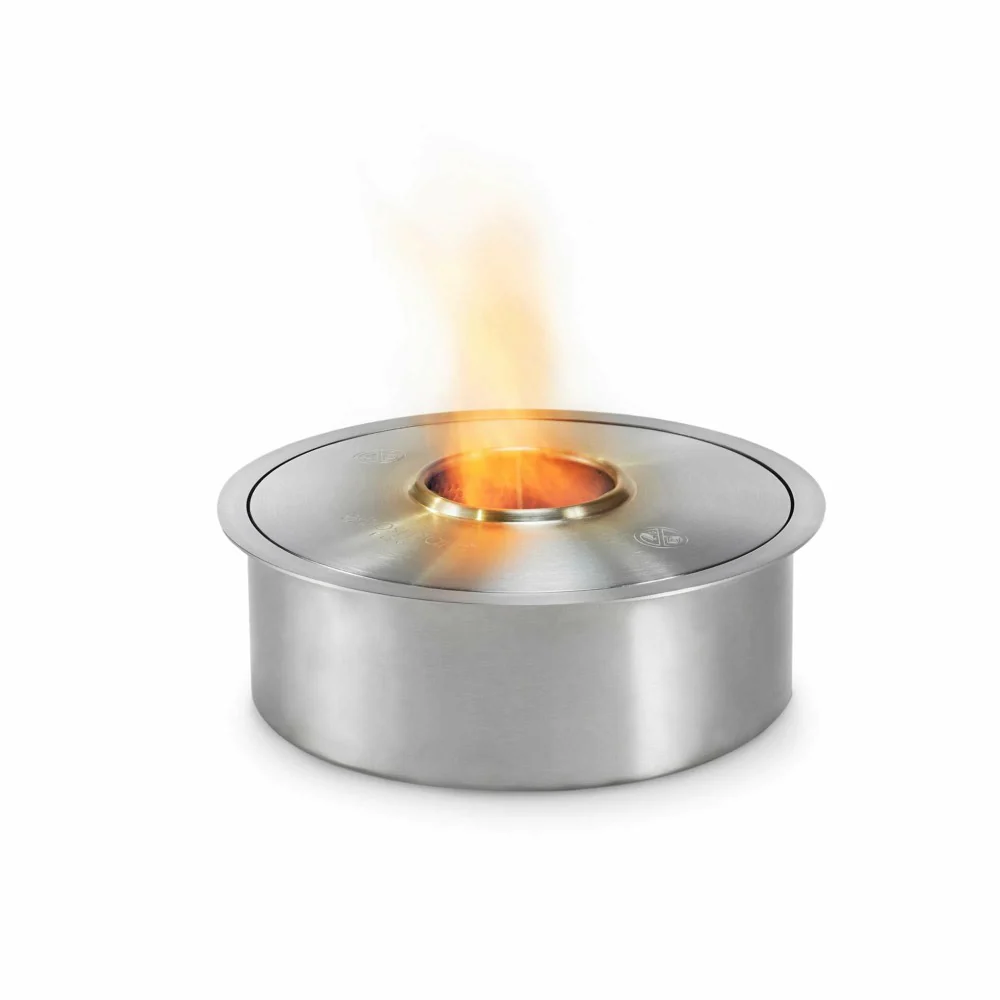

The AB3 is a small but effective round bioethanol burner. The smallest of EcoSmart’s round ethanol burners, but no less effective.

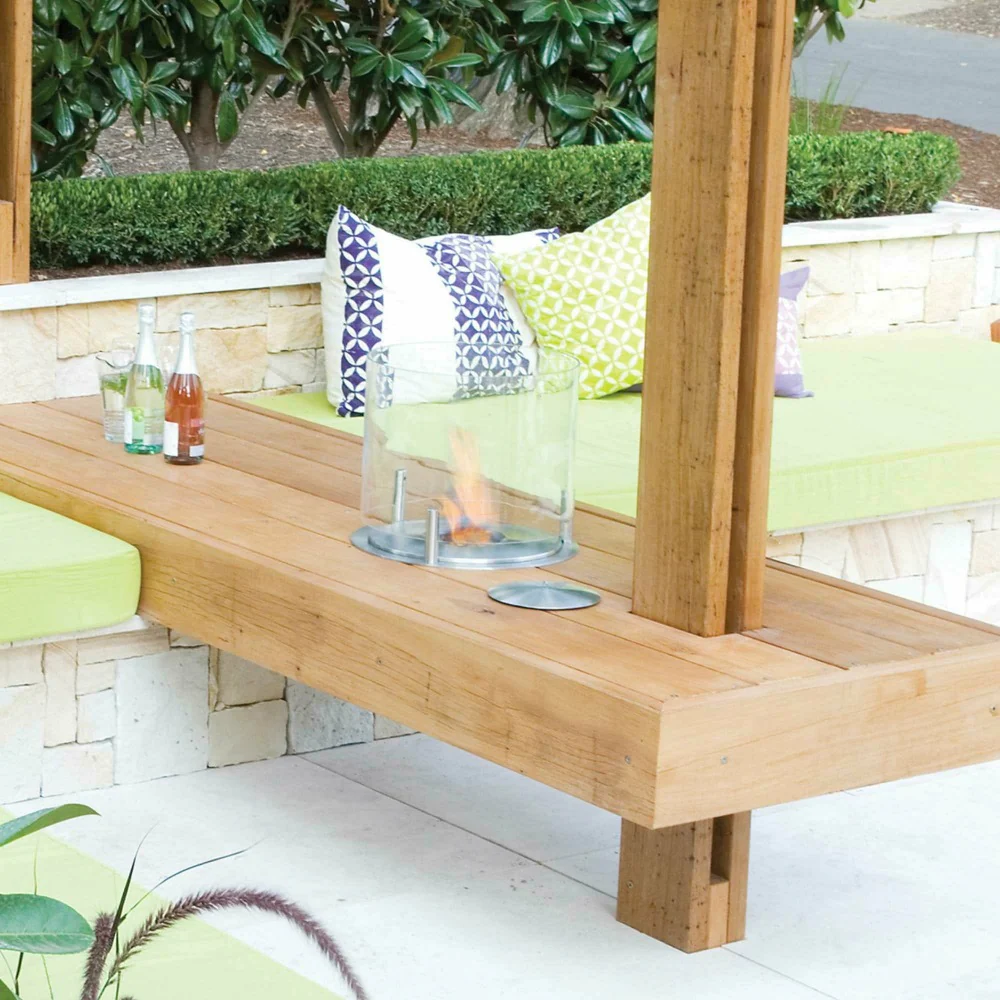

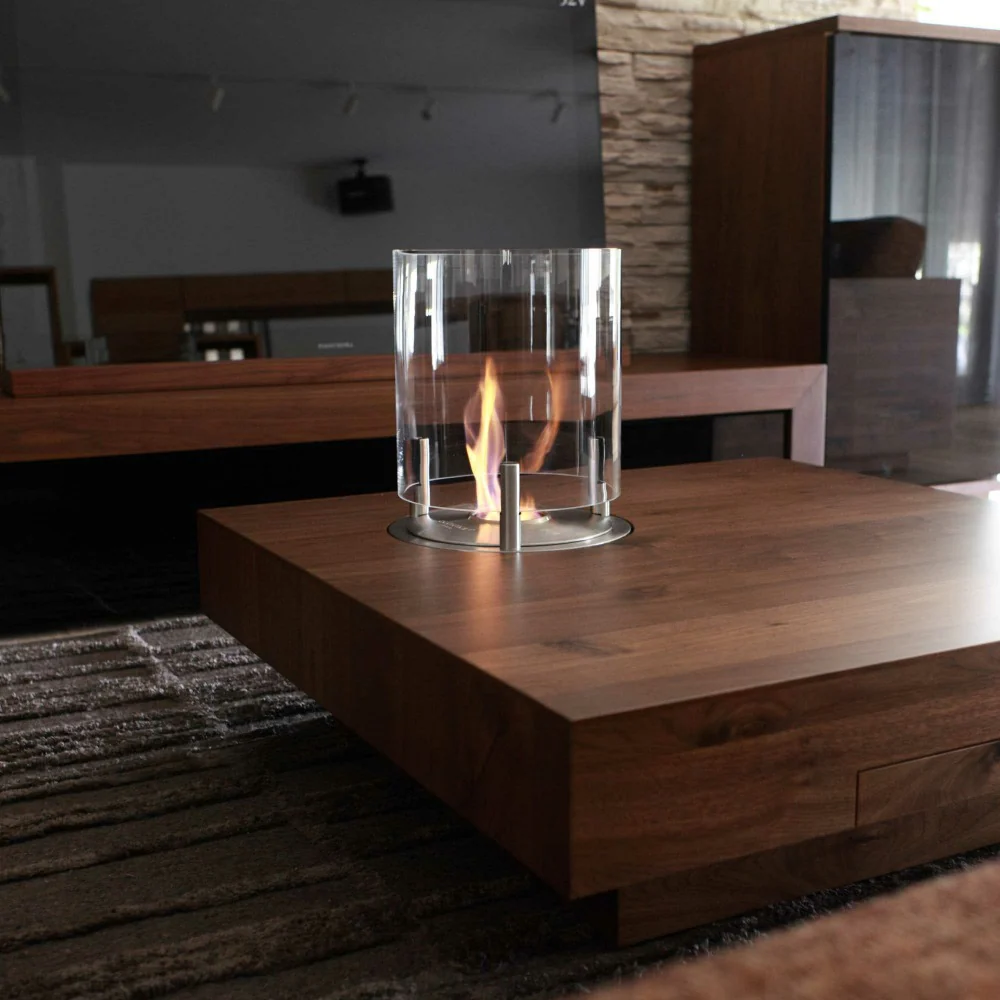

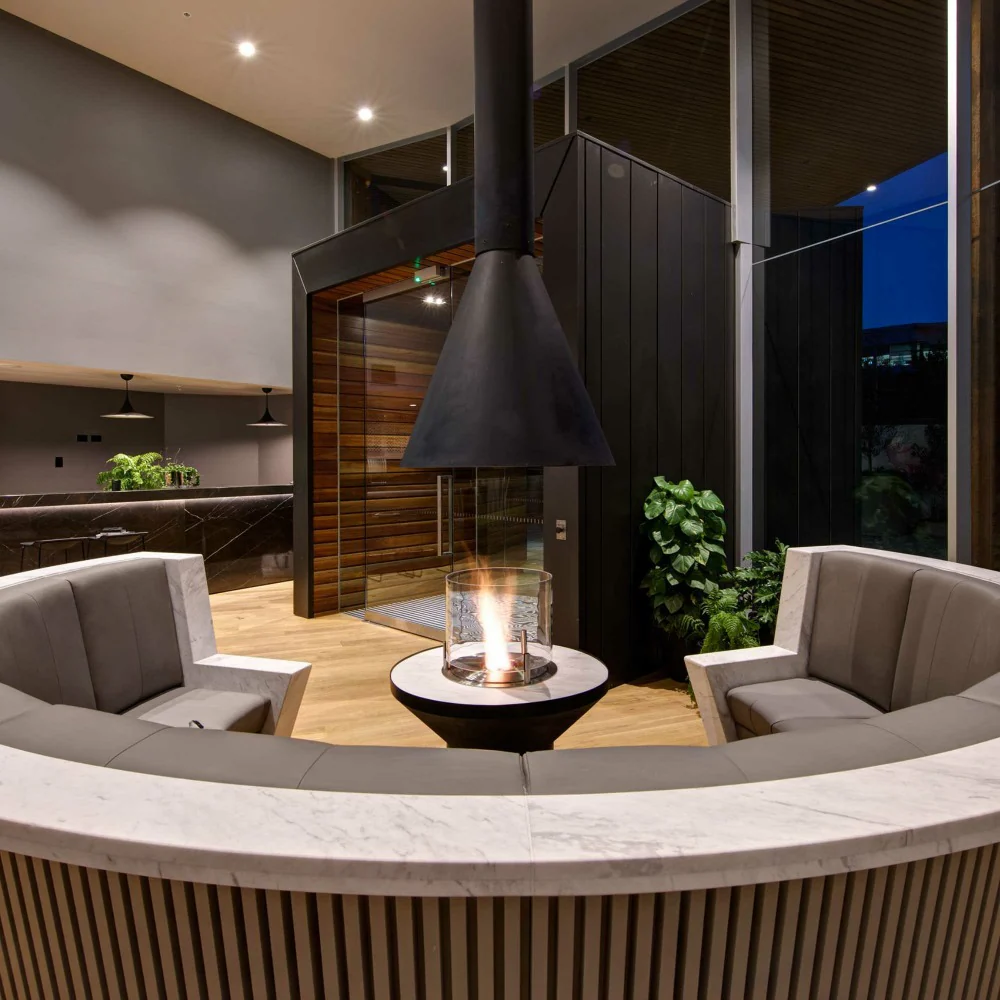

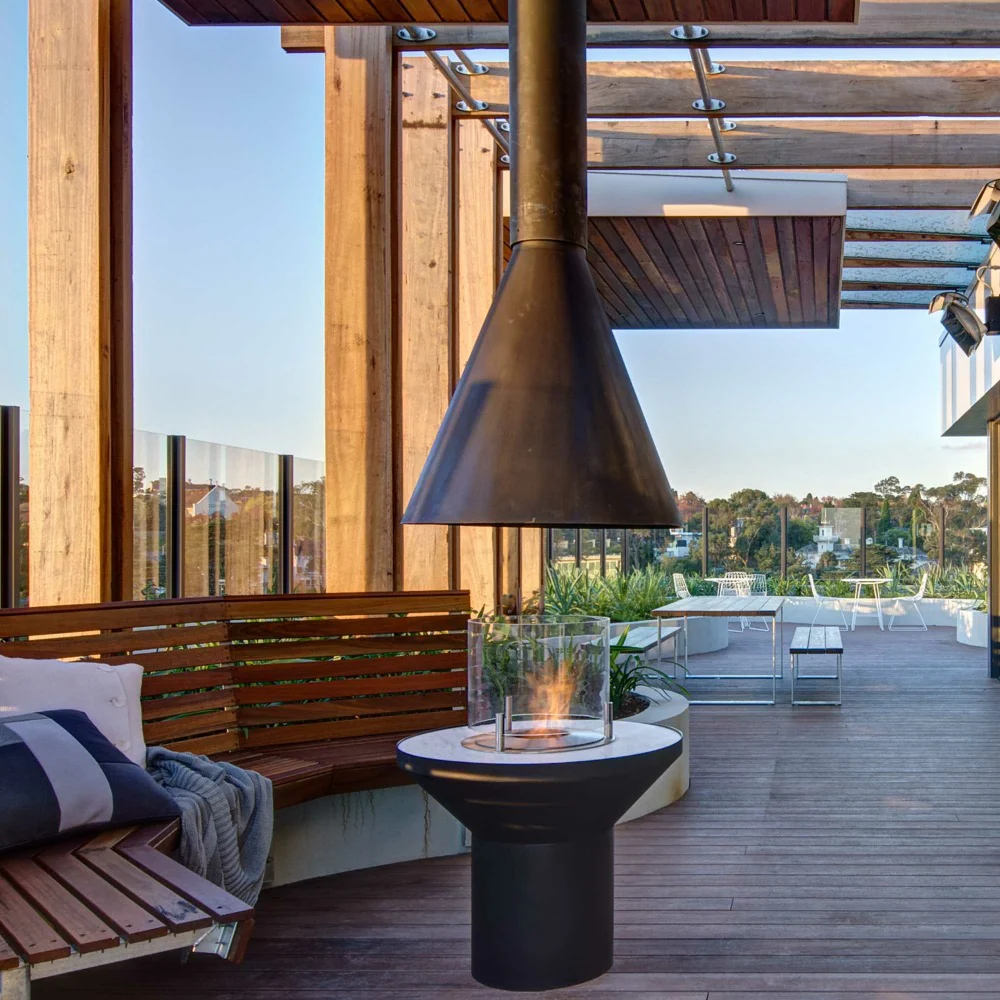

It’s the core of many freestanding, portable designer indoor and outdoor fires. Still, it also provides the versatility to create your own – and the creative designs worldwide are a testament to this.

Do You Have Any Questions?

Would this be your first eco-friendly bioethanol fire? If you have any questions, please use the “Questions” tab on this page or call Allison, our EcoSmart expert, on 0800 949 4040.

Also, please check out More About Bio Ethanol; this will show you a selection of bio-ethanol fire pits available and their eco-friendly credentials.

Specifications:

• Model Dimensions: L 29.1cm W 29.1cm D 10.1cm

• Weight: 3.7kg

• AB3 Burner Brochure

Application

• Indoor & Outdoor

Materials

Stainless Steel Grade 304 Burner

Efficiency AB3 Bioethanol Burner

• Capacity: 2.5 L

• Heats on Average: 20m2

• Minimum Room: 40m3

• Burn Time: 8-11h

• Thermal Output: 6.1 MJ/h - 5800 BTU/h - 1.7 kW

* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.

Key Features

Minimal Clearance

AB3’s minimal clearance requirement allows you to create your envisioned installation.

Enduring flame

AB3’s 2.5L capacity gives up to 11 hours of burn time.

Environmentally-Friendly

The AB3 is fuelled by eco-friendly, renewable energy – e-NRG bioethanol.
No Flue, no chimney, no connection

There’s no need for a chimney to vent harmful gases, as burning liquid e-NRG bioethanol does not produce any smoke. No utility connections are required!

Quality and Durability

Crafted from high-quality, 304-grade stainless steel, designed to deliver robust performance time after time.

Stability Assured

The AB3 is filled with steel wool to enhance the flame's stability and regulate its ethanol fuel efficiency.

Tested World Wide

Our collection has been thoroughly tested against several global standards and is UL Listed in the USA.

Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Clean Burning

Fuelled by eNRG, environmentally friendly renewable energy. Burns clean doesn’t harm the environment.

Maximum Safety

EcoSmart Fireplaces are very safe and come with a built-in flame arrester, some simple operating procedures and accessories allow for safe and easy fireplace refuelling.

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.



Lighting Rod

This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Jerry Can 5L

Safety features include automatic stop flow, fast flow rate, locking thumb button control and self-venting system.





Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Choose the Right Fuel - Use e-NRG bioethanol

It is essential that you choose the right fuel. e-NRG bioethanol is the ONLY fuel suitable for use in your EcoSmart Fire. You can purchase e-NRG bioethanol on FirePit.co.uk.

What is e-NRG?

Formulated for use in ventless ethanol fireplaces, e-NRG is the cleanest, most efficient liquid bioethanol fuel on the market and produces the best flame each and every time.

Green e-NRG produces no harmful emissions - just heat, steam, and carbon dioxide.
