EcoSmart XL500 Bioethanol Burner Insert

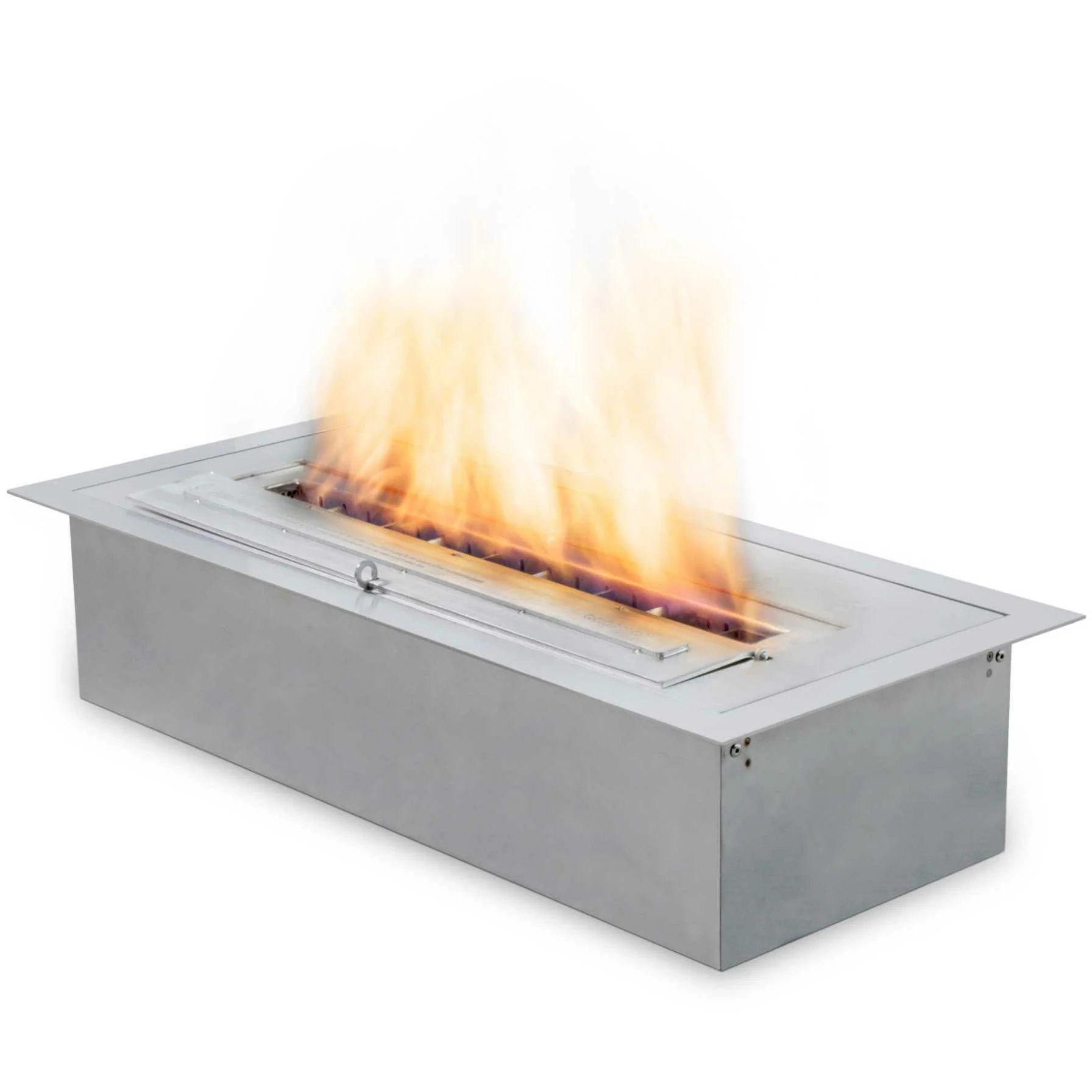

XL500 Bioethanol Burner

The XL500 Bioethanol Burner is a bioethanol burner insert, integrate into your own design.

Our EcoSmart XL500 Bioethanol Burner comes with Free Fuel, that’s 40 litres of e-NRG.

Please add the e-NRG to your basket, the discount will automatically be applied at checkout.

XL500 is the smallest of our linear ethanol burners. The baby of the XL Series, the XL500 may be compact in size, but this 5L ethanol burner effectively delivers a beautifully long, lasting flame.

Like the other models within the XL Series, this fire can be easily integrated into a horizontal, tailor-made setting. Whether you just use the burner by itself or as part of a Flex firebox insert, you have an amazing design tool to achieve your vision.

Specifications:

• Model Dimensions: L 55.3cm W 24.8cm D 12.4cm

• Weight: 9.1kg

• XL500 Brochure

Application

• Indoor & Outdoor

Materials

Stainless Steel Grade 304 Burner

Efficiency XL500 Bioethanol Burner

• Capacity: 5 L [1.3 Gal]

• Heats on Average: 40m2

• Minimum Room: 80m3

• Burn Time: 10-13h

• Thermal Output: 12 MJ/h - 11430 BTU/h - 3.4 kW

Do You Have Any Questions?

Would this be your first eco-friendly bioethanol fire? If you have any questions, please use the “Questions” tab on this page or give Allison our EcoSmart expert a call on 0800 949 4040 or email on [email protected].

Also, please check out More About Bio Ethanol, this will show you a selection of bio ethanol fire pits available and their eco friendly credentials.

Key Features

Design Versatility

Easily integrated into bespoke settings – from specially-made cabinetry, media units, walls, floating timber to stone benches and pillars.

Myriad Materials

Diverse range of materials can be used in your bespoke fire – think concrete and hard timber benches, marble recesses, stacked stone walls, stainless steel – even metal barrels cut in half!

Flame Regulation

Purpose-designed baffle inserts allow you to regulate and further stabilise the flame.

No Harmful By-Products

e-NRG bioethanol produces a beautiful orange flame from start to finish without producing by-products such as smoke, soot or ash.

Award-Winning

Awarded the 2009 Hearth & Home Vesta Award (USA).

Standalone or Integrated

Easily installed as a standalone ethanol burner in tailored setting or in conjunction with a zero-clearance Flex Fireplace Insert.

Clean Burning

Fuelled by eNRG, an environmentally friendly renewable energy. Burns clean, doesn’t harm the environment.

Tested World Wide

Our collection has been thoroughly tested against a number of global standards and are UL Listed in the USA.

Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Maximum Safety

EcoSmart Fireplaces are very safe and come with a built-in flame arrester, there are simple operating procedures and accessories that allow for safe and easy fireplace refuelling.

Fire Lighter

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.



Lighting Rod

This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

Jerry Can 5L

Safety features include automatic stop flow, fast flow rate, locking thumb button control and self venting system.

XL500 Top Tray

The incorporation of a Top Tray into your setting protects against heat transference and aids in the collection of accidental spillage.

XL Baffles

XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

Bottle Adaptor

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

Choose the Right Fuel - Use e-NRG bioethanol

It is essential that you choose the right fuel. e-NRG bioethanol is the ONLY fuel suitable for use in your EcoSmart Fire. You can purchase e-NRG bioethanol on FirePit.co.uk.

What is e-NRG?

Formulated for use in ventless ethanol fireplaces, e-NRG is the cleanest, most efficient liquid bioethanol fuel on the market and produces the best flame each and every time.

Green e-NRG produces no harmful emissions - just heat, steam, and carbon dioxide.
